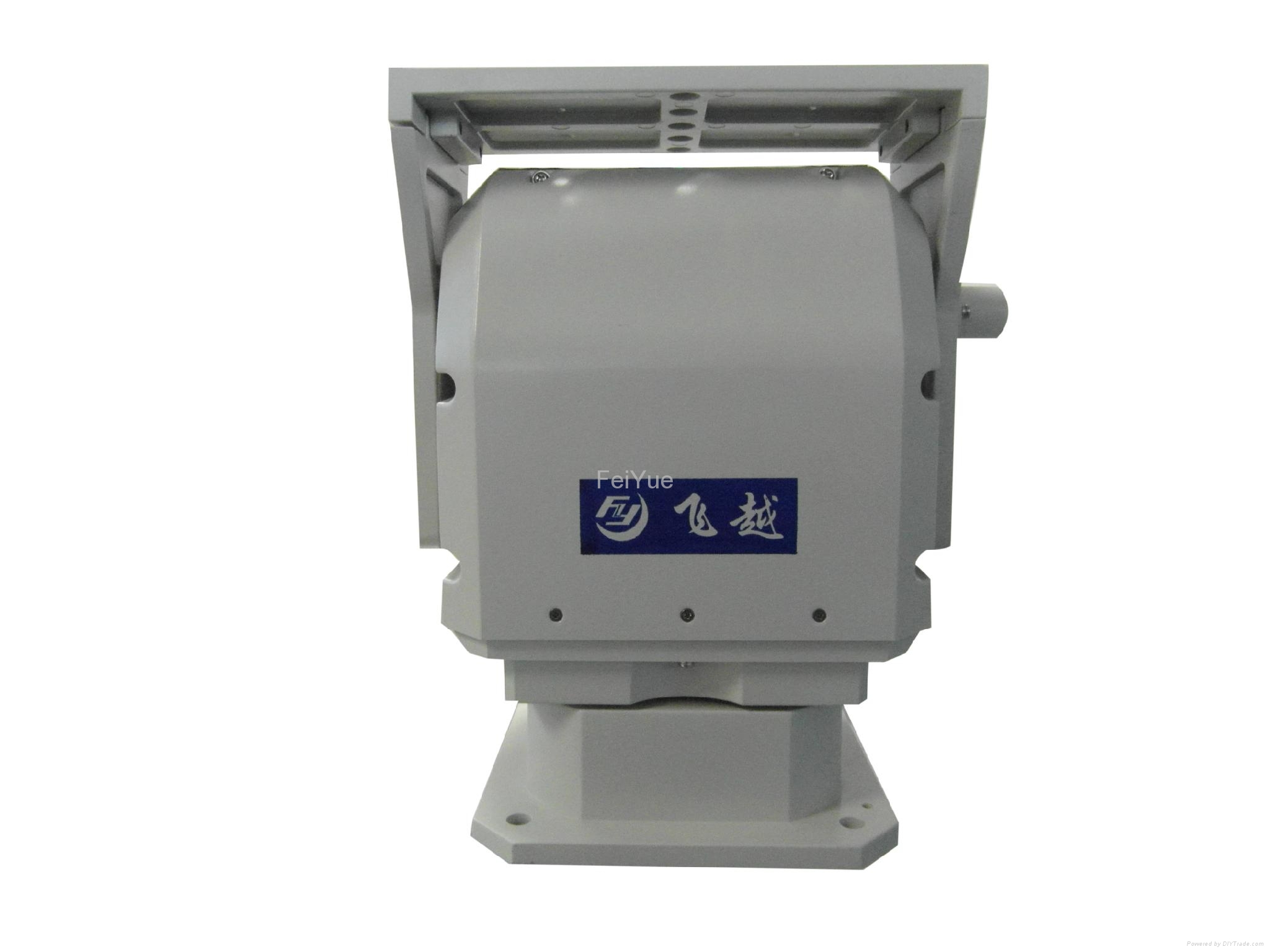

Features:
1. Max Load: 10kg/15kg/22kg;
2. Supporting lens presets self-adaptive function;
3.Pan speed is up to 60°/s;
4. High resetting accuracy, up to ±0.1°;
5. Housing adopts die-cast aluminum alloy material; worm-gear driven; self-locked if power is off;
6.Pan:0~360° continuous ,Tilt: ±60°, ±45°, ±30°optional;
7. Protection Class: IP66
8. Support OSD menu;
9. It can be upgraded to network Pan Tilt;
10. Optional function: returning data of pan tilt position, focal length, focus etc.
Specification:
Model
|
FY-SP2510
|
FY-SP2515
|
FY-SP2520
|
Rotating Speed
|
Pan:0.01°~60°/s
Tilt:0.01°~30°/s
|
Pan:0.01°~45°/s
Tilt:0.01°~15°/s
|
Pan:0.01°~20°/s
Tilt:0.01°~10°/s
|
Rotation Angle
|
Pan:0°~360° continuous, Tilt: +20°~-60°
|
Number of Presets
|
Up to 200
|
Preset Positioning Accuracy
|
±0.1°
|
Optional function
|
Pan tilt position data, focal length etc.
|
Auxiliary Switch
|
2 groups
|
Lens Preset
|
Support ,it can carry various brands of lens
|
Lens control speed
|
Speed of zoom/focus can be adjustable continuously
|
Auto Cruising
|
Up to 8 paths, each has 10 cruise points.
|
Homing
|
It can be set up within the scope of 1~ 60 min
|
Auto Scan
|
1 path
|
Protocol
|
Pelco-D/P
|
Baud Rate
|
2400/4800/9600/19200bps
|
Interface
|
RS485, supporting angle query returns( Or RS422, real-time returns)
|
Input Voltage
|
AC24V±20%,50/60HZ;DC28V±20%
|
Power Consumption
|
≤70W
|
Operation Temperature
|
Temp:-25℃~+65℃,Humidity:90%±3% RH; without condensation(-40℃~+65℃)
|
Storage Temperature
|
-40℃~+70℃
|
Max Load
|
10kg
|
15 kg
|
20 kg
|
Load Mode
|
Top-mounted/side-mounted
|
Driven
|
Worm gear driven
|
Protection Class
|
IP66
|
Weight
|
12.5 kg
|
Dimensions
|
265mm*180mm*315mm(L*W*H)
|
