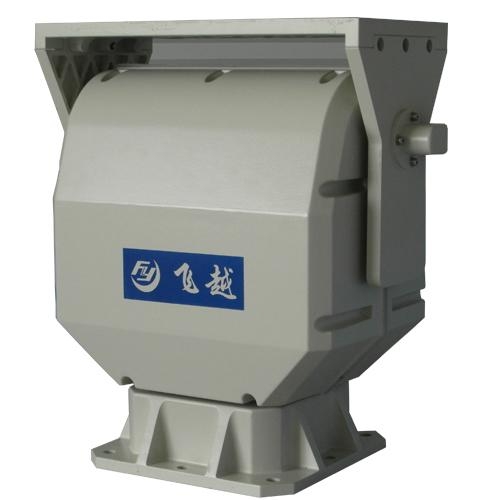

Features:
1. Max Load: 35kg/50kg;
2. Supporting lens presets self-adaption function;
3. High resetting accuracy, up to ±0.1°;
4. Housing adopts die-cast aluminum alloy material; worm-gear driven; self-locked if power is off;
5.Pan:0～360°continuous ,Tilt: ±60°, ±45°, ±30°optional;
6. Protection Class: IP66
7. Support OSD menu;
8. It can be upgraded to network Pan Tilt;
9. Optional function: returning data of pantilt position, focal length, focus etc.
Specification:
|
Model
|
FY-SP5035
|
FY-SP5050
|
|
Rotating Speed
|
Pan:0.01°～20°/s
Tilt:0.01°～10°/s
|
Pan:0.01°～12°/s
Tilt:0.01°～8°/s
|
|
Rotation Angle
|
Pan:0°～360° continuous,Tilt:+45°～-45°
|
|
Number of Presets
|
Up to 200
|
|
Preset Positioning Accuracy
|
±0.1°
|
|
Optional function
|
pantilt position data, focal length etc.
|
|
Auxiliary Switch
|
2 groups
|
|
Lens Preset
|
Support ,it can carry various brands of lens
|
|
Lens control speed
|
Speed of zoom/focus can be adjustable continuously
|
|
Auto Cruising
|
Up to 8 paths, each has 10 cruise points.
|
|
Homing
|
It can be set up within the scope of 1～ 60 min
|
|
Auto Scan
|
1 path
|
|
Protocol
|
Pelco-D/P
|
|
Baud Rate
|
2400/4800/9600/19200bps
|
|
Interface
|
RS485, supporting angle query returns( Or RS422, real-time returns)
|
|
Input Voltage
|
AC24V±20%,50/60HZ;DC28V±20%
|
|
Power Consumption
|
≤80W
|
|
Operation Temperature
|
Temp:-25℃～+65℃,Humidity:90%±3% RH; without condensation(-40℃～+65℃)
|
|
Storage Temperature
|
-40℃～+70℃
|
|
Max Load
|
35 kg
|
50 kg
|
|
Load Mode
|
Top-mounted/side-mounted
|
|
Driven
|
Worm gear driven
|
|
Protection Class
|
IP66
|
|
Weight
|
23 kg
|
|
Dimensions
|
350mm*206mm*380mm(L*W*H)
|
